# UNIDENTIFIED
CL34 (VER.2)
Card Type Video card
Video Chip Set Cirrus Logic
Maximum Video Memory 2MB DRAM
Video Types Supported VGA
Highest Resolution Supported 1024 x 768
Data Bus 32-bit PCI

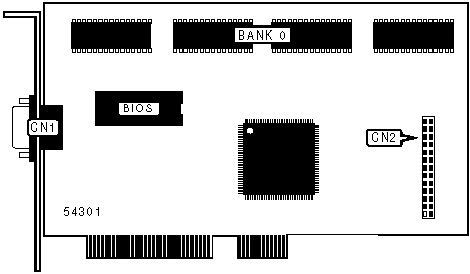

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin Analog Video | CN1 | Feature connector | CN2 |
| Port | | | |
+------------------------------------------------------------+
