# UNIDENTIFIED
1580 REV.I
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 1MB DRAM
Video Types Supported VGA
Highest Resolution Supported Unidentified
Data Bus 16-bit ISA

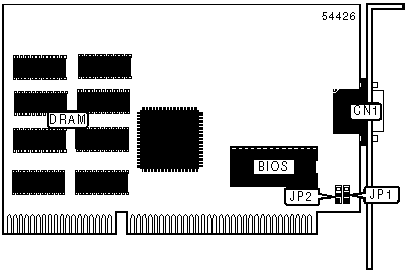

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| 15-pin video analog connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY CONFIGURATION |
|------------------------------------------------------------|
| Display | JP1 |
|----------------------------+-------------------------------|
| ยป | SVGA | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | VESA | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO INTERLACE CONFIGURATION |
|------------------------------------------------------------|
| Function | JP2 |
|--------------------+---------------------------------------|
| Interlace enabled | Pins 1 & 2 closed |
|--------------------+---------------------------------------|
| Interlace disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
