Title: Full-featured email server running OpenBSD
Author: Solène
Date: 24 July 2024
Tags: nocloud selfhosting openbsd security
Description: In this blog post, you will learn everything you know to
setup a secure and low maintenance email server
# Introduction
This blog post is a guide explaining how to setup a full-featured email
server on OpenBSD 7.5. It was commissioned by a customer of my
consultancy who wanted it to be published on my blog.
Setting up a modern email stack that does not appear as a spam platform
to the world can be a daunting task, the guide will cover what you need
for a secure, functional and low maintenance email system.
The features list can be found below:
* email access through IMAP, POP or Webmail
* secure SMTP server (mandatory server to server encryption, personal
information hiding)
* state-of-the-art setup to be considered as legitimate as possible
* firewall filtering (bot blocking, all ports closes but the required
ones)
* anti-spam
In the example, I will set up a temporary server for the domain
`puffy.cafe` with a server using the subdomain `mail.puffy.cafe`. From
there, you can adapt with your own domain.
# Quick reminder
I prepared a few diagrams explaining how all the components are used
together, in three cases: when sending an email, when the SMTP servers
receives an email from the outside and when you retrieve your emails
locally.

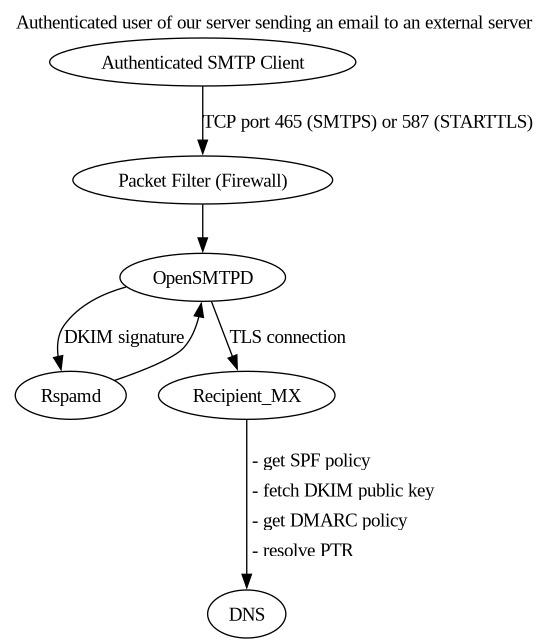

IMG Authenticated user sending an email to the outside

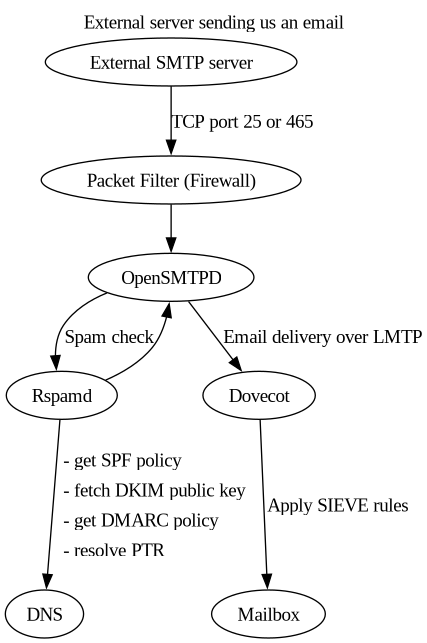

IMG Outside sending an email to one of our users

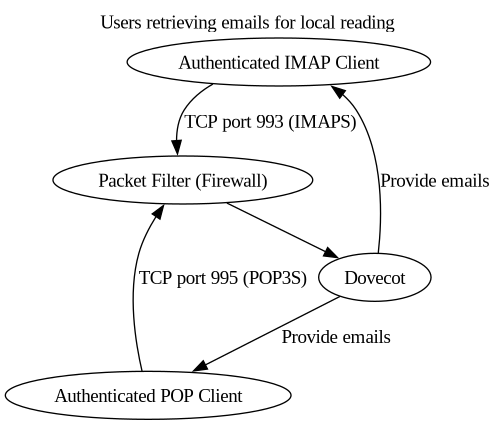

IMG User retrieving emails for reading
# Packet Filter (PF)
Packet Filter is OpenBSD's firewall. In our setup, we want all ports
to be blocked except the few ones required for the email stack.
The following ports will be required:
* opensmtpd 25/tcp (smtp): used for email delivery from other servers,
supports STARTTLS
* opensmtpd 465/tcp (smtps): used to establish a TLS connection to the
SMTP server to receive or send emails
* opensmtpd 587/tcp (submission): used to send emails to external
servers, supports STARTTLS
* httpd 80/tcp (http): used to generate TLS certificates using ACME
* dovecot 993/tcp (imaps): used to connect to the IMAPS server to read
emails
* dovecot 995/tcp (pop3s): used to connect to the POP3S server to
download emails
* dovecot 4190/tcp (sieve): used to allow remote management of an user
SIEVE rules
Depending on what services you will use, only the opensmtpd ports are
mandatory. In addition, we will open the port 22/tcp for SSH.
```pf.conf
set block-policy drop
set loginterface egress
set skip on lo0
# normalisation des paquets
match in all scrub (no-df random-id max-mss 1440)
antispoof quick for { egress }
tcp_ports = "{ smtps smtp submission imaps pop3s sieve ssh http }"
block all
pass out inet
pass out inet6
# allow ICMP (ping)
pass in proto icmp
# allow IPv6 to work
pass in on egress inet6 proto icmp6 all icmp6-type { routeradv neighbrsol neighbradv }
pass in on egress inet6 proto udp from fe80::/10 port dhcpv6-server to fe80::/10 port dhcpv6-client no state
# allow our services
pass in on egress proto tcp from any to any port $tcp_ports
# default OpenBSD rules
# By default, do not permit remote connections to X11
block return in on ! lo0 proto tcp to port 6000:6010
# Port build user does not need network
block return out log proto {tcp udp} user _pbuild
```
# DNS
If you want to run your own email server, you need a domain name
configured with a couple of DNS records about the email server.
## MX records
HTML Wikipedia page: MX record
The MX records list the servers that should be used by outside SMTP
servers to send us emails, this is the public list of our servers
accepting emails for a given domain. They have a weight associated to
each of them, the server with the lowest weight should be used first
and if it does not respond, the next server used will be the one with a
slightly higher weight. This is a simple mechanism that allow setting
up a hierarchy.
I highly recommend setting up at least two servers, so if your main
server fails is unreachable (host outage, hardware failure, upgrade
ongoing) the emails will be sent to the backup server. Dovecot bundles
a program to synchronize mailboxes between servers, one way or two-way,
one shot or continuously.
If you have no MX records in your domain name, it is not possible to
send you emails. It is like asking someone to send you a post card
without giving them any clue about your real address.
Your server hostname can be different from the domain apex (raw domain
name without a subdomain), a simple example would be to use
`mail.domain.example` for the server name, this will not prevent it
from receiving/sending emails using `@domain.example` in email
addresses.
In my example, the domain puffy.cafe mail server will be
mail.puffy.cafe, giving this MX record in my DNS zone:
```dns
IN MX 10 mail.puffy.cafe.
```
## SPF
HTML Wikipedia page: SPF record
The SPF record is certainly the most important piece of the email
puzzle to detect spam. With the SPF, the domain name owner can define
which servers are allowed to send emails from that domain. A properly
configured spam filter will give a high spam score to incoming emails
that are not in the sender domain SPF.
To ease the configuration, that record can automatically include all MX
defined for a domain, but also A/AAAA records, so if you only use your
MX servers for sending, a simple configuration allowing MX servers to
send is enough.
In my example, only mail.puffy.cafe should be legitimate for sending
emails, any future MX server should also be allowed to send emails, so
we configure the SPF to allow all MX defined servers to be senders.
```dns
600 IN TXT "v=spf1 mx -all"
```
## DKIM
HTML Wikipedia page: DKIM signature
When used, the DKIM is a system allowing a receiver to authenticate a
sender, based on an asymmetric cryptographic keys. The sender
publishes its public key on a TXT DNS record before signing all
outgoing emails using the private key. By doing so, receivers can
validate the email integrity and make sure it was sent from a server of
the domain claimed in the From header.
DKIM is mandatory to not be classified as a spamming server.
The following set of commands will create a 2048 bits RSA key in
`/etc/mail/dkim/private/puffy.cafe.key` with its public key in
`/etc/mail/dkim/puffy.cafe.pub`, the `umask 077` command will make sure
any file created during the process will only be readable by root.
Finally, you need to make the private key readable to the group
`_rspamd`.
Note: the umask command will persist in your shell session, if you do
not want to create files/directory only readable by root after this,
either spawn a new shell, or run the set of commands in a new shell and
then exit from it once you are done.
```
umask 077
install -d -o root -g wheel -m 755 /etc/mail/dkim
install -d -o root -g _dkim -m 775 /etc/mail/dkim/private
openssl genrsa -out /etc/mail/dkim/private/puffy.cafe.key 2048
openssl rsa -in /etc/mail/dkim/private/puffy.cafe.key -pubout -out /etc/mail/dkim/puffy.cafe.pub
chgrp _rspamd /etc/mail/dkim/private/puffy.cafe.key /etc/mail/dkim/private/
chmod 440 /etc/mail/dkim/private/puffy.cafe.key
chmod 775 /etc/mail/dkim/private/
```
In this example, we will name the DKIM selector `dkim` to keep it
simple. The selector is the name of the key, this allows having
multiple DKIM keys for a single domain.
Add the DNS record like the following, the value in `p` is the public
key in the file `/etc/mail/dkim/puffy.cafe.pub`, you can get it as a
single line with the command `awk '/PUBLIC/ { $0="" } { printf
("%s",$0) } END { print }' /etc/mail/dkim/puffy.cafe.pub`:
Your registrar may offer to add the entry using a DKIM specific form.
There is nothing wrong doing so, just make sure the produced entry
looks like the entry below.
```
dkim._domainkey IN TXT "v=DKIM1;k=rsa;p=MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAo3tIFelMk74wm+cJe20qAUVejD0/X+IdU+A2GhAnLDpgiA5zMGiPfYfmawlLy07tJdLfMLObl8aZDt5Ij4ojGN5SE1SsbGC2MTQGq9L2sLw2DXq+D8YKfFAe0KdYGczd9IAQ9mkYooRfhF8yMc2sMoM75bLxGjRM1Fs1OZLmyPYzy83UhFYq4gqzwaXuTvxvOKKyOwpWzrXzP6oVM7vTFCdbr8E0nWPXWKPJhcd10CF33ydtVVwDFp9nDdgek3yY+UYRuo/iJvdcn2adFoDxlE6eXmhGnyG4+nWLNZrxIgokhom5t5E84O2N31YJLmqdTF+nH5hTON7//5Kf/l/ubwIDAQAB"
```
## DMARC
HTML Wikipedia page: DMARC record
The DMARC record is an extra mechanism that comes on top of SPF/DKIM,
while it does not do much by itself, it is important to configure it.
DMARC could be seen as a public notice explaining to servers receiving
emails whose sender looks like your domain name (legit or not) what
they should do if SPF/DKIM does not validate.
As of 2024, DMARC offers three actions for receivers:
* do nothing but make a report to the domain owner
* "quarantine" mode: tell the receiver to be suspicious without
rejecting it, the result will depend on the receiver (most of the time
it will be flagged as spam) and make a report
* "reject" mode: tell the receiver to not accept the email and make a
report
In my example, I want invalid SPF/DKIM emails to be rejected. It is
quite arbitrary, but I prefer all invalid emails from my domain to be
discarded rather than ending up in a spam directory, so `p` and `sp`
are set to `reject`. In addition, if my own server is misconfigured I
will be notified about delivery issues sooner than if emails were
silently put into quarantine.
An email address should be provided to receive DMARC reports, they are
barely readable and I never made use of them, but the email address
should exist so this is what the `rua` field is for.
The field `aspf` is set to `r` (relax), basically this allows any
servers with a hostname being a subdomain of `.puffy.cafe` to send
emails for `@puffy.cafe`, while if this field is set to `s` (strict),
the domain of the sender should match the domain of the email server
(`mail.puffy.cafe` would only be allowed to send for
`@mail.puffy.cafe`).
HTML Mx Toolbox website: DMARC tags list
```
_dmarc IN TXT "v=DMARC1;p=reject;rua=mailto:dmarc@puffy.cafe;sp=reject;aspf=r;"
```
## PTR (Reverse DNS)
HTML Wikipedia page: PTR record
An older mechanism used to prevent spam was to block, or consider as
spam, any SMTP server whose advertised hostname did not match the
result of the reverse lookup of its IP.
Let's say "mail.foobar.example" (IP: A.B.C.D) is sending an email to my
server, if the result of the DNS request to resolve the PTR of A.B.C.D
is not "mail.foobar.example", the email would be considered as spam or
rejected. While this is superseded by SPF/DKIM and annoying as it is
not always possible to define a PTR for a public IP, the reverse DNS
setup is still a strong requirement to not be considered as a spamming
platform.
Make sure the PTR matches the system hostname and not the domain name
itself, in the example above the PTR should be `mail.foobar.example`
and not `foobar.example`.
# System configuration
## Acme-client
The first step is to obtain a valid TLS certificate, this requires
configuring acme-client, httpd and start httpd daemon.
Copy the acme-client example `cp /etc/examples/acme-client.conf /etc/`
Modify `/etc/acme-client.conf` and edit only the last entry to
configure your own domain, mine looks like this:
```
#
# $OpenBSD: acme-client.conf,v 1.5 2023/05/10 07:34:57 tb Exp $
#
authority letsencrypt {
api url "https://acme-v02.api.letsencrypt.org/directory"
account key "/etc/acme/letsencrypt-privkey.pem"
}
authority letsencrypt-staging {
api url "https://acme-staging-v02.api.letsencrypt.org/directory"
account key "/etc/acme/letsencrypt-staging-privkey.pem"
}
authority buypass {
api url "https://api.buypass.com/acme/directory"
account key "/etc/acme/buypass-privkey.pem"
contact "mailto:me@example.com"
}
authority buypass-test {
api url "https://api.test4.buypass.no/acme/directory"
account key "/etc/acme/buypass-test-privkey.pem"
contact "mailto:me@example.com"
}
domain mail.puffy.cafe {
# you can remove the line "alternative names" if you do not need extra subdomains
# associated to this certificate
# imap.puffy.cafe is purely an example, I do not need it
alternative names { imap.puffy.cafe pop.puffy.cafe }
domain key "/etc/ssl/private/mail.puffy.cafe.key"
domain full chain certificate "/etc/ssl/mail.puffy.cafe.fullchain.pem"
sign with letsencrypt
}
```
Now, configure httpd, starting from the OpenBSD example: `cp
/etc/examples/httpd.conf /etc/`
Edit `/etc/httpd.conf`, we want the first block to match all domains
but not "example.com", and we do not need the second block listen on
443/tcp (except if you want to run a https server with some content,
but you are on your own then). The resulting file should look like the
following:
```httpd.conf
# $OpenBSD: httpd.conf,v 1.22 2020/11/04 10:34:18 denis Exp $
server "*" {
listen on * port 80
location "/.well-known/acme-challenge/*" {
root "/acme"
request strip 2
}
location * {
block return 302 "https://$HTTP_HOST$REQUEST_URI"
}
}
```
Enable and start httpd with `rcctl enable httpd && rcctl start httpd`.
Run `acme-client -v mail.puffy.cafe` to generate the certificate with
some verbose output (if something goes wrong, you will have a clue).
If everything went fine, you should have the full chain certificate in
`/etc/ssl/mail.puffy.cafe.fullchain.pem` and the private key in
`/etc/ssl/private/mail.puffy.cafe.key`.
## Rspamd
You will use rspamd to filter spam and sign outgoing emails for DKIM.
Install rspamd and the filter to plug it to opensmtpd:
```shell
pkg_add rspamd-- opensmtpd-filter-rspamd
```
You need to configure rspamd to sign outgoing emails with your DKIM
private key, to proceed, create the file
`/etc/rspamd/local.d/dkim_signing.conf` (the filename is important):
```
# our usernames does not contain the domain part
# so we need to enable this option
allow_username_mismatch = true;
# this configures the domain puffy.cafe to use the selector "dkim"
# and where to find the private key
domain {
puffy.cafe {
path = "/etc/mail/dkim/private/puffy.cafe.key";
selector = "dkim";
}
}
```
For better performance, you need to use redis as a cache backend for
rspamd:
```shell
rcctl enable redis
rcctl start redis
```
Now you can start rspamd:
```
rcctl enable rspamd
rcctl start rspamd
```
For extra information about rspamd (like statistics or its web UI), I
wrote about it in 2021:
HTML Older blog post: 2024-07-13 Filtering spam using Rspamd and OpenSMTPD on OpenBSD
### Alternatives
If you do not want to use rspamd, it is possible to replace the DKIM
signing part using `opendkim`, `dkimproxy` or
`opensmtpd-filter-dkimsign`. The spam filter could be either replaced
by the featureful `spamassassin` available as a package, or partially
with the base system program `spamd` (it does not analyze emails).
This guide only focus on rspamd, but it is important to know
alternatives exist.
## OpenSMTPD
OpenSMTPD configuration file on OpenBSD is `/etc/mail/smtpd.conf`, here
is a working configuration with a lot of comments:
```smtpd.conf
## this defines the paths for the X509 certificate
pki puffy.cafe cert "/etc/ssl/mail.puffy.cafe.fullchain.pem"
pki puffy.cafe key "/etc/ssl/private/mail.puffy.cafe.key"
pki puffy.cafe dhe auto
## this defines how the local part of email addresses can be split
# defaults to '+', so solene+foobar@domain matches user
# solene@domain. Due to the '+' character being a regular source of issues
# with many online forms, I recommend using a character such as '_',
# '.' or '-'. This feature is very handy to generate infinite unique emails
# addresses without pre-defining aliases.
# Using '_', solene_openbsd@domain and solene_buystuff@domain lead to the
# same address
smtp sub-addr-delim '_'
## this defines an external filter
# rspamd does dkim signing and spam filter
filter rspamd proc-exec "filter-rspamd"
## this defines which file will contain aliases
# this can be used to define groups or redirect emails to users
table aliases file:/etc/mail/aliases
## this defines all the ports to use
# mask-src hides system hostname, username and public IP when sending an email
listen on all port 25 tls pki "puffy.cafe" filter "rspamd"
listen on all port 465 smtps pki "puffy.cafe" auth mask-src filter "rspamd"
listen on all port 587 tls-require pki "puffy.cafe" auth mask-src filter "rspamd"
## this defines actions
# either deliver to lmtp or to an external server
action "local" lmtp "/var/dovecot/lmtp" alias <aliases>
action "outbound" relay
## this defines what should be done depending on some conditions
# receive emails (local or from external server for "puffy.cafe")
match from any for domain "puffy.cafe" action "local"
match from local for local action "local"
# send email (from local or authenticated user)
match from any auth for any action "outbound"
match from local for any action "outbound"
```
In addition, you can configure the advertised hostname by editing the
file `/etc/mail/mailname`: for instance my machine's hostname is
`ryzen` so I need this file to advertise it as `mail.puffy.cafe`.
Restart OpenSMTPD with `rcctl restart smtpd`.
### TLS
For ports using STARTTLS (25 and 587), there are different options with
regard to TLS encryption.
* do not allow STARTTLS
* offer STARTTLS but allow not using it (option `tls`)
* require STARTTLS: drop connection when the remote peer does ask for
STARTTLS (option `tls-require`)
* require STARTTLS: drop connection when no STARTTLS, and verify the
remote certificate (option `tls-require verify`)
It is recommended to enforce STARTTLS on port 587 as it is used by
authenticated users to send emails, preventing them to send emails
without network encryption.
On port 25, used by external servers to reach yours, it is important to
allow STARTTLS because most server will deliver emails over an
encrypted TLS session, however it is your choice to enforce it or not.
Enforcing STARTTLS might break email delivery from some external
servers that are outdated or misconfigured (or bad actors).
### User management
By default, OpenSMTPD is configured to deliver email to valid users in
the system. In my example, if user `solene` exists, then email address
`solene@puffy.cafe` will deliver emails to `solene` user mailbox.
Of course, as you do not want the system daemons to receive emails, a
file contains aliases to redirect emails from a user to another, or
simply discard it.
In `/etc/mail/aliases`, you can redirect emails to your username by
adding a new line, in the example below I will redirect root emails to
my user.
```
root: solene
```
It is possible to redirect to multiple users using a comma to separate
them, this is handful if you want to create a local group delivering
emails to multiple users.
Instead of a user, it is possible to append the incoming emails to a
file, pipe them to a command or return an SMTP code. The aliases(5)
man pages contains all you need to know.
HTML OpenBSD manual pages: aliases(5)
Every time you modify this file, you need to run the command `smtpctl
update table aliases` to reload the aliases table in OpenSMTPD memory.
You can add a new email account by creating a new user with a shell
preventing login:
```
useradd -m -s /sbin/nologin username_here
passwd username_here
```
This user will not be able to do anything on the server but connecting
to SMTP/IMAP/POP. They will not be able to change their password
either!
### Handling extra domains
If you need to handle emails for multiple domains, this is rather
simple:
* Add this line to the file `/etc/mail/smtpd.conf` by changing
`puffy.cafe` to the other domain name: `match from any for domain
"puffy.cafe" action "local"`
* Configure the other domain DNS MX/SPF/DKIM/DMARC
* Configure `/etc/rspamd/local.d/dkim_signing.conf` to add a new block
with the other domain, the dkim selector and the dkim key path
* The PTR does not need to be modified as it should match the machine
hostname advertised over SMTP, and it is an unique value anyway
If you want to use a different aliases table for the other domain, you
need to create a new aliases file and configure `/etc/mail/smtpd.conf`
accordingly where the following lines should be added:
```
table lambda file:/etc/mail/aliases-lambda
action "local_mail_lambda" lmtp "/var/dovecot/lmtp" alias <lambda>
match from any for domain "lambda-puffy.eu" action "local_mail_lambda"
```
Note that the users will be the same for all the domains configured on
the server. If you want to have separate users per domains, or that
"user a" on domain A and "user a" on domain B could be different
persons / logins, you would need to setup virtual users instead of
using system users. Such setup is beyond the scope of this guide.
### Without Dovecot
It is possible to not use Dovecot. Such setup can suit users who would
like to download the maildir directory using rsync on their local
computer, this is a one-way process and does not allow sharing a
mailbox across multiple devices. This reduces maintenance and attack
surface at the cost of convenience.
This may work as a two-way access (untested) when using a software such
as unison to keep both the local and remote directories synchronized,
but be prepared to manage file conflicts!
If you want this setup, replace the following line in smtpd.conf
```
action "local" lmtp "/var/dovecot/lmtp" alias <aliases>
```
by this line: if you want to store the emails into a maildir format (a
directory per email folder, a file per email), emails will be stored in
the directory "Maildir" in user's homes.
```
action "local" maildir "~/Maildir/" junk alias <aliases>
```
or this line if you want to keep the mbox format (a single file with
emails appended to it, not practical), the emails will be stored in
/var/mail/$user.
```
action "local" mbox alias <aliases>
```
HTML Wikipedia page: Maildir format
HTML Wikipedia page: Mbox format
## Dovecot
Dovecot is an important piece of software for the domain end users, it
provides protocols like IMAP or POP3 to read emails from a client. It
is the most popular open source IMAP/POP server available (the other
being Cyrus IMAP).
Install dovecot with the following command line:
```
pkg_add dovecot-- dovecot-pigeonhole--
```
Dovecot has a lot of configuration files in `/etc/dovecot/conf.d/`
although most of them are commented and ready to be modified, you will
have to edit a few of them. This guide provides the content of files
with empty lines / comments stripped so you can quickly check if your
file is ok, you can use the command `awk '$1 !~ /^#/ && $1 ~ /./'` on a
file to display its "useful" content only (awk will not modify the
file).
Modify `/etc/dovecot/conf.d/10-ssl.conf` and search the lines
`ssl_cert` and `ssl_key`, change their values to your certificate full
chain and private key.
Generate a Diffie-Hellman file for perfect forward secrecy, this will
make each TLS negociation unique, so if the private key ever leak,
every past TLS communication will remain safe.
```shell
openssl dhparam -out /etc/dovecot/dh.pem 4096
chown _dovecot:_dovecot /etc/dovecot/dh.pem
chmod 400 /etc/dovecot/dh.pem
```
The file (filtered of all comments/empty lines) should look like the
following:
```dovecot
ssl_cert = </etc/ssl/mail.puffy.cafe.fullchain.pem
ssl_key = </etc/ssl/private/mail.puffy.cafe.key
ssl_dh = </etc/dovecot/dh.pem
```
Modify `/etc/dovecot/conf.d/10-mail.conf`, search for a commented line
`mail_location`, uncomment it and set the value to `maildir:~/Maildir`,
this will tell Dovecot where users mailboxes are stored and in which
format, we want to use the maildir format.
The resulting file should look like:
```dovecot
mail_location = maildir:~/Maildir
namespace inbox {
inbox = yes
}
mmap_disable = yes
first_valid_uid = 1000
mail_plugin_dir = /usr/local/lib/dovecot
protocol !indexer-worker {
}
mbox_write_locks = fcntl
```
Modify the file `/etc/dovecot/conf.d/20-lmtp.conf`, LMTP is the
protocol used by opensmtpd to transmit incoming emails to dovecot.
Search for the commented variable `mail_plugins` and uncomment it with
the value `mail_plugins = $mail_plugins sieve`:
The resulting file should look like:
```dovecot
protocol lmtp {
mail_plugins = $mail_plugins sieve
}
```
If you do not want to use IMAP or POP3, you do not need Dovecot. There
is an explanation above how to proceed without Dovecot.
### IMAP
HTML Wikipedia page: IMAP protocol
IMAP is an efficient protocol that returns headers of emails per
directory, so you do not have to download all your emails to view the
directory list, emails are downloaded upon read (by default in most
email clients). It allows some cool features like server side search,
incoming email sorting with sieve filters or multi devices access.
Edit `/etc/dovecot/conf.d/20-imap.conf` and configure the last lines
accordingly to the result file:
```dovecot
protocol imap {
mail_plugins = $mail_plugins imap_sieve
mail_max_userip_connections = 25
}
```
The number of connections per user/IP should be high if you have an
email client tracking many folders, in IMAP a connection is required
for each folder, so the number of connections can quickly increase. On
top of that, if you have multiple devices under the same public IP you
could quickly reach the limit. I found 25 worked fine for me with 3
devices.
### POP
HTML Wikipedia page: POP protocol
POP3 is a pretty old protocol that is rarely considered by users, I
still consider it a viable alternative to IMAP depending on your needs.
A major incentive for using POP is that it downloads all emails locally
before removing them from the server. As we have no tooling to encrypt
emails stored on remote email servers, POP3 is a must if you want to
not leave any email on the server. POP3 does not support remote
folders, so you can not use Sieve filters on the server to sort your
emails and then download them as-this. A POP3 client downloads the
Inbox and then sorts the emails locally.
It can support multiple devices under some conditions: if you delete
the emails after X days, your devices should synchronize before the
emails are removed. In such case they will have all the emails stored
locally, but they will not be synced together: if both computers A and
B are up-to-date, when deleting an email on A, it will still be in B.
There are no changes required for POP3 in Dovecot as the defaults are
good enough.
### JMAP
For information, a replacement for IMAP called JMAP is in development,
it is meant to be better than IMAP in every way and also include
calendars and address book management.
JMAP Implementations are young but exist, although support in email
clients is almost non-existent. For instance, it seems Mozilla
Thunderbird is not interested in it, an issue in their bug tracker
about JMAP from December 2016 only have a couple of comments from
people who would like to see it happening, nothing more.
HTML Issue 1322991: Add support for new JMAP protocol
From the JMAP website page listing compatible clients, I only
recognized the name "aerc" which is a modern console email client.
HTML JMAP project website: clients list
### Sieve (filtering rules)
HTML Wikipedia page: Sieve
Dovecot has a plugin to offer Sieve filters, they are rules applied to
received emails going into your mailbox, whether you want to sort them
into dedicated directories, mark them read or block some addresses.
That plugin is called pigeonhole.
You will need Sieve to enable the spam filter learning system when
moving emails from/to the Junk folder as it is triggered by a Sieve
rule. This improves rspamd Bayes (a method using tokens to understand
information, the story of the person behind it is interesting) filter
ability to detect spam accurately.
Edit `/etc/dovecot/conf.d/90-plugin.conf` with the following content:
```
plugin {
sieve_plugins = sieve_imapsieve sieve_extprograms
# From elsewhere to Spam folder
imapsieve_mailbox1_name = Spam
imapsieve_mailbox1_causes = COPY
imapsieve_mailbox1_before = file:/usr/local/lib/dovecot/sieve/report-spam.sieve
# From Spam folder to elsewhere
imapsieve_mailbox2_name = *
imapsieve_mailbox2_from = Spam
imapsieve_mailbox2_causes = COPY
imapsieve_mailbox2_before = file:/usr/local/lib/dovecot/sieve/report-ham.sieve
sieve_pipe_bin_dir = /usr/local/lib/dovecot/sieve
sieve_global_extensions = +vnd.dovecot.pipe +vnd.dovecot.environment
}
```
This piece of configuration was taken from the official Dovecot
documentation:
https://doc.dovecot.org/configuration_manual/howto/antispam_with_sieve/
. It will trigger shell scripts calling rspamd to make it learn what
does a spam look like, and what is legit (ham). One script will run
when an email is moved out of the spam directory (ham), another one
when an email is moved to the spam directory (spam).
Modify `/etc/dovecot/conf.d/15-mailboxes.conf` to add the following
snippet inside the block `namespace inbox { ... }`, it will associate
the Junk directory as the folder containing spam and automatically
create it if it does not exist:
```
mailbox Spam {
auto = create
special_use = \Junk
}
```
To make this work completely, you need to write the two extra sieve
filters that will run trigger the scripts:
Create `/usr/local/lib/dovecot/sieve/report-spam.sieve`
```sieve
require ["vnd.dovecot.pipe", "copy", "imapsieve", "environment", "variables"];
if environment :matches "imap.user" "*" {
set "username" "${1}";
}
pipe :copy "sa-learn-spam.sh" [ "${username}" ];
```
Create `/usr/local/lib/dovecot/sieve/report-ham.sieve`
```sieve
require ["vnd.dovecot.pipe", "copy", "imapsieve", "environment", "variables"];
if environment :matches "imap.mailbox" "*" {
set "mailbox" "${1}";
}
if string "${mailbox}" "Trash" {
stop;
}
if environment :matches "imap.user" "*" {
set "username" "${1}";
}
pipe :copy "sa-learn-ham.sh" [ "${username}" ];
```
Create `/usr/local/lib/dovecot/sieve/sa-learn-ham.sh`
```shell
#!/bin/sh
exec /usr/local/bin/rspamc -d "${1}" learn_ham
```
Create `/usr/local/lib/dovecot/sieve/sa-learn-spam.sh`
```shell
#!/bin/sh
exec /usr/local/bin/rspamc -d "${1}" learn_spam
```
Make the two scripts executable with `chmod +x
/usr/local/lib/dovecot/sieve/sa-learn-spam.sh
/usr/local/lib/dovecot/sieve/sa-learn-ham.sh`.
Run the following command to compile the sieve filters:
```
sievec /usr/local/lib/dovecot/sieve/report-spam.sieve
sievec /usr/local/lib/dovecot/sieve/report-ham.sieve
```
### Manage Sieve
By default, Sieves rules are a file located on the user home directory,
however there is a standard protocol named "managesieve" to manage
Sieve filters remotely from an email client.
It is enabled out of the box in Dovecot configuration, although you
need to make sure you open the port 4190/tcp in the firewall if you
want to allow users to use it.
### Start the service
Once you configured everything, make sure that dovecot service is
enabled, and then start / restart it:
```
rcctl enable dovecot
rcctl start dovecot
```
# Webmail
A webmail will allow your users to read / send emails from a web
interface instead of having to configure a local email client. While
they can be convenient, they enable a larger attack surface and are
often affected by vulnerability issues, you may prefer to avoid webmail
on your server.
The two most popular open source webmail are Roundcube mail and
Snappymail (a fork of the abandoned rainloop) and Roundcube, they both
have pros and cons.
## Roundcube mail setup
Roundcube is packaged in OpenBSD, it will pull in all required
dependencies and occasionally receive backported security updates.
Install the package:
```
pkg_add roundcubemail
```
When installing the package, you will be prompted for a database
backend for PHP. If you have one or two users, I highly recommend
choosing SQLite as it will work fine without requiring a running
daemon, thus less maintenance and server resources locked. If you plan
to have a lot of users, there are no wrong picks between MySQL or
PostgreSQL, but if you already have one of them running it would be
better to reuse it for Roundcube.
Specific instructions for installing Roundcube are provided by the
package README in `/usr/local/share/doc/pkg-readmes/roundcubemail`.
We need to enable a few PHP modules to make Roundcube mail working:
```
ln -s /etc/php-8.2.sample/zip.ini /etc/php-8.2/
ln -s /etc/php-8.2.sample/intl.ini /etc/php-8.2/
ln -s /etc/php-8.2.sample/opcache.ini /etc/php-8.2/
ln -s /etc/php-8.2.sample/pdo_sqlite.ini /etc/php-8.2/
```
Note that more PHP modules may be required if you enable extra features
and plugins in Roundcube.
PHP is ready to be started:
```
rcctl enable php82_fpm
rcctl start php82_fpm
```
Add the following blocks to `/etc/httpd.conf`, make sure you opened the
port 443/tcp in your `pf.conf` and that you reloaded it with `pfctl -f
/etc/pf.conf`:
```
server "mail.puffy.cafe" {
listen on egress tls
tls key "/etc/ssl/private/mail.puffy.cafe.key"
tls certificate "/etc/ssl/mail.puffy.cafe.fullchain.pem"
root "/roundcubemail"
directory index index.php
location "*.php" {
fastcgi socket "/run/php-fpm.sock"
}
}
types {
include "/usr/share/misc/mime.types"
}
```
Restart httpd with `rcctl restart httpd`.
You need to configure Roundcube to use a 24 bytes security key and
configure the database: edit the file
`/var/www/roundcubemail/config/config.inc.php`:
Search for the variable `des_key`, replace its value by the output of
the command `tr -dc [:print:] < /dev/urandom | fold -w 24 | head -n 1`
which will generate a 24 byte random string. If the string contains a
quote character, either escape this character by prefixing it with a
`\` or generate a new string.
For the database, you need to search the variable `db_dsnw`.
If you use SQLite, change this line
```
$config['db_dsnw'] = 'sqlite:///roundcubemail/db/sqlite.db?mode=0660';
```
by this line:
```
$config['db_dsnw'] = 'sqlite:///db/sqlite.db?mode=0660';
```
If you chose MySQL/MariaDB or PostgreSQL, modify this line:
```
$config['db_dsnw'] = 'mysql://roundcube:pass@localhost/roundcubemail';
```
by
```
$config['db_dsnw'] = 'mysql://USER:PASSWORD@DATABASE_NAME';
```
Where `USER`, `PASSWORD` and `DATABASE_NAME` must match a new user and
database created into the backend.
Because PHP is chrooted on OpenBSD and that the OpenSMTPD configuration
enforces TLS on port 587, it is required to enable TLS to work in the
chroot:
```
mkdir -p /var/www/etc/ssl
cp -p /etc/ssl/cert.pem /etc/ssl/openssl.cnf /var/www/etc/ssl/
```
To make sure the files `cert.pem` and `openssl.cnf` stay in sync after
upgrades, add the two commands to a file `/etc/rc.local` and make this
file executable. This script always starts at boot and is the best
place for this kind of file copy.
If your IMAP and SMTP hosts are not on the same server where Roundcube
is installed, adapt the variables `imap_host` and `smtp_host` to the
server name.
If Roundcube mail is running on the same server where OpenSMTPD is
running, you need to disable certificate validation because `localhost`
will not match the certificate and authentication will fail. Change
`smtp_host` line to `$config['smtp_host'] = 'tls://127.0.0.1:587';` and
add this snippet to the configuration file:
```
$config['smtp_conn_options'] = array(
'ssl' => array('verify_peer' => false, 'verify_peer_name' => false),
'tls' => array('verify_peer' => false, 'verify_peer_name' => false));
```
From here, Roundcube mail should work when you load the domain
configured in `httpd.conf`.
For a more in-depth guide to install and configure Roundcube mail,
there is an excellent guide available which was written by Bruno
Flückiger:
HTML Install Roundcube on OpenBSD
# Hardening
It is always possible to improve the security of this stack, all the
following settings are not mandatory, but they can be interesting
depending on your needs.
## Always allow the sender per email or domain
It is possible to configure rspamd to force it to accept emails from a
given email address or domain, bypassing the anti-spam.
To proceed, edit the file `/etc/rspamd/local.d/multimap.conf` to add
this content:
```
local_wl_domain {
type = "from";
filter = "email:domain";
map = "$CONFDIR/local.d/whitelist_domain.map";
symbol = "LOCAL_WL_DOMAIN";
score = -10.0;
description = "domains that are always accepted";
}
local_wl_from {
type = "from";
map = "$CONFDIR/local.d/whitelist_email.map";
symbol = "LOCAL_WL_FROM";
score = -10.0;
description = "email addresses that are always accepted";
}
```
Create the files `/etc/rspamd/local.d/whitelist_domain.map` and
`/etc/rspamd/local.d/whitelist_email.map` using the command `touch`.
Restart the service rspamd with `rcctl restart rspamd`.
The created files use a simple syntax, add a line for each entry you
want to allow:
* a domain name in `/etc/rspamd/local.d/whitelist_domain.map` to allow
the domain
* an email address in `/etc/rspamd/local.d/whitelist_email.map` to
allow this address
There is no need to restart or reload rspamd after changing the files.
Reusing the same technique can be done to block domains/addresses
directly in rspamd by giving a high positive score.
## Block bots
I published on my blog a script and related configuration to parse
OpenSMTPD logs and block the bad actors with PF.
HTML 2023-06-22 Ban scanners IPs from OpenSMTP logs
This includes an ignore file if you do not want some IPs to be blocked.
## Split the stack
If you want to improve your email setup security further, the best
method is to split each part into dedicated systems.
As dovecot is responsible for storing and exposing emails to users,
this component would be safer in a dedicated system, so if a component
of the email stack (other than dovecot) is compromised, the mailboxes
will not be exposed.
## Network attack surface reduction
If this does not go against usability of the email server users, I
strongly recommend limiting the publicly opened ports in the firewall
to the minimum: 25, 80, 465, 587. This would prevent attackers to
exploit any network related 0day or unpatched vulnerabilities of
non-exposed services such as Dovecot.
A VPN should be deployed to allow users to reach Dovecot services
(IMAP, POP) and other services if any.
SSH port could be removed from the public ports as well, however, it
would be safer to make sure your hosting provider offers a serial
access / VNC / remote access to the system because if the VPN stops
working, you will not be able to log in into the system using SSH to
debug it.
# Email client configuration
If everything was done correctly so far, you should have a complete
email stack fully functional.
Here are the connection information to use your service:
* IMAP/POP3/SMTP login: username on the remote system (the username
does not include the `@` part)
* IMAP/POP3/SMTP password: password of the remote system user
* IMAP/POP3 server: dovecot server hostname
* IMAP/POP3 port: 993 for IMAPS and 995 for POP3S (TLS is enabled)
* SMTP server: opensmtpd server hostname
* SMTP port: either 465 in SSL/TLS mode (encryption forced), or 587 in
STARTTLS mode (encryption not enforced depending on OpenSMTPD
configuration)
The webmail, if any, will be available at the address configured in
`httpd.conf`, using the same credentials as above.
# Verify the setup
There is an online service providing you a random email address to send
a test email to, then you can check the result on their website
displaying if the SPF, DKIM, DMARC and PTR records are correctly
configured.
HTML www.mail-tester.com
The score you want to be displayed on their website is no least than
10/10. The service can report meaningless issues like "the email was
poorly formatted" or "you did not include an unsubscribe link", they
are not relevant for the current test.
While it used to be completely free last time I used it, I found it
would ask you to pay after three free checks if you do not want to wait
24h. It uses your public IP address for the limit.
# Maintenance
## Running processes
The following processes list should always be running: using a program
like monit, zabbix or reed-alert to notify you when they stop working
could be a good idea.
* dovecot
* httpd
* redis
* rspamd
* smtpd
## Certificates renewal
In addition, the TLS certificate should be renewed regularly as ACME
generated certificates are valid for a few months. Edit root crontab
with `crontab -e` as root to add this line:
```
10 4 * * 0 -s acme-client mail.puffy.cafe && rcctl restart dovecot httpd smtpd
```
This will try to renew the certificate for `mail.puffy.cafe` every
Sunday at 04h10 and upon renewal restart the services using the
certificate: dovecot, httpd and smtpd.
## All about logs
If you need to find some logs, here is a list of paths where to find
information:
* dovecot: `/var/log/maillog`
* httpd: `/var/log/daemon` for the daemon, access logs in
`/var/www/logs/access.log` and errors logs in `/var/www/logs/error.log`
* redis: `/var/log/daemon`
* rspamd: `/var/log/rspamd/rspamd.log` and its web UI on port 11334
(only on localhost by default, a SSH tunnel can be handy)
* smtpd: `/var/log/maillog`
* roundcube: `/var/www/roundcubemail/logs/errors.log` and
`/var/www/roundcubemail/logs/sendmail.log`
A log rotation of the new logs can be configured in
`/etc/newsyslog.conf` with these lines (take only what you need):
```newsyslog
/var/log/rspamd/rspamd.log 600 7 500 * Z "pkill -USR1 -u root -U root -x rspamd"
/var/www/roundcubemail/logs/errors.log 600 7 500 * Z
/var/www/roundcubemail/logs/sendmail.log 600 7 500 * Z
```
## Disk space
Finally, OpenSMTPD will stop delivering emails locally if the `/var`
partition has less than 4% of free disk space, be sure to monitor the
disk space of this partition otherwise you will not receive emails
anymore for a while before noticing something is wrong.
# Conclusion
Congratulations, you configured a whole email stack that will allow you
to send emails to the world, using your own domain and hardware.
Keeping your system up to date is important as you have network
services exposed to the wild Internet.
Even with a properly configured setup featuring SPF/DKIM/DMARC/PTR, it
is not guaranteed to not end in the spam directory of our recipients.
The IP reputation of your SMTP server also account, and so is the
domain name extension (I have a `.pw` domain which I learned too late
that it was almost always considered as spam because it is not
mainstream).
