Title: Presentation of Pi-hole
Author: Solène
Date: 18 December 2024
Tags: network security linux
Description: In this blog post, you will learn about the Pi-hole
project, a libre software project to monitor and filter DNS requests on
your LAN.
# Introduction
This blog post is about the project Pi-hole, a libre software suite to
monitor and filter DNS requests over a local network.
HTML Pi-hole official project page
Pi-hole is Linux based, it is a collection of components and
configuration that can be installed on Linux, or be used from a
Raspberry PI image ready to write on a flash memory.

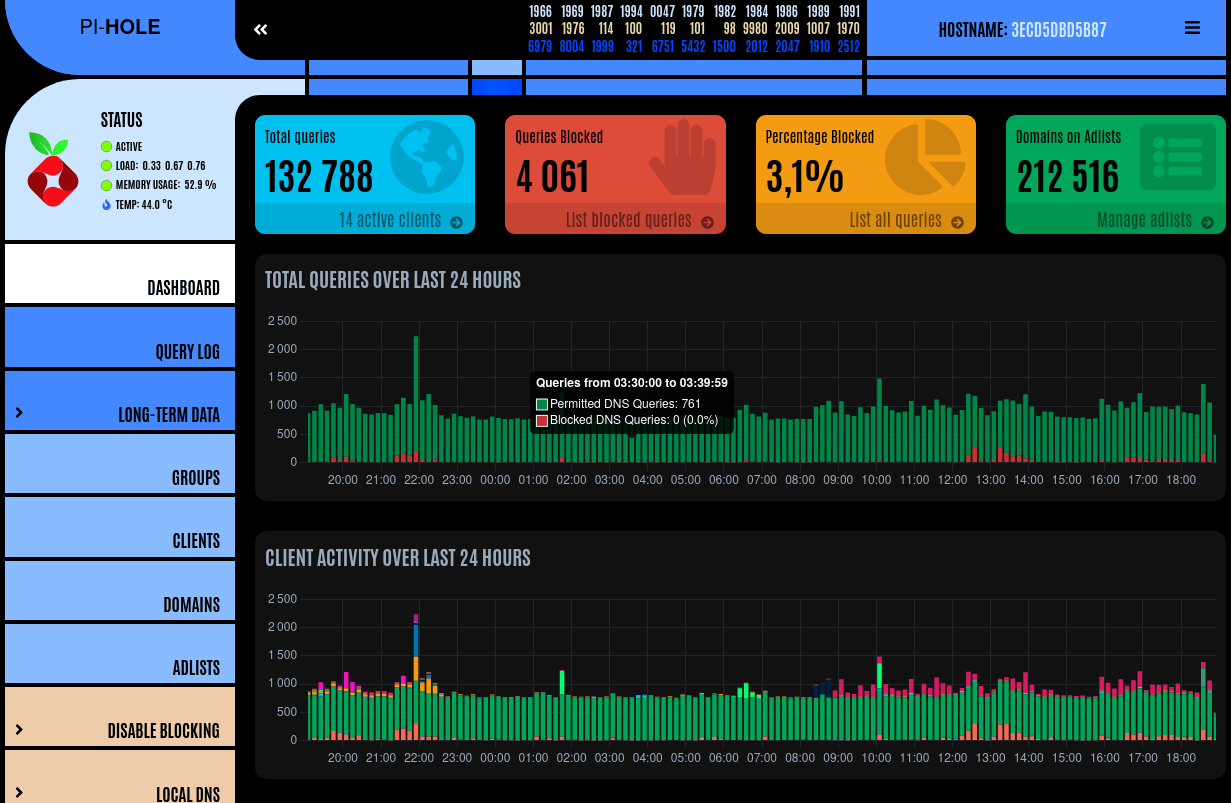

IMG The top of Pi-hole dashboard display, star trek skin
# Features
Most of Pi-hole configuration happens on a clear web interface (which
is available with a star trek skin by the way), but there is also a
command line utility and a telnet API if you need to automate some
tasks.
## Filtering
The most basic feature of Pi-hole is filtering DNS requests. While it
comes with a default block list from the Internet, you can add custom
lists using their URLs, the import supports multiple formats as long as
you tell Pi-hole which format to use for each source.
Filtering can be done for all queries, although you can create groups
that will not be filtered and assign LAN hosts that will belong to this
group, in some situation there are hosts you may not want to filter.
The resolving can be done using big upstream DNS servers (Cloudflare,
Google, OpenDNS, Quad9 ...), but also custom servers. It is possible
to configure a recursive resolver by installing unbound locally.
HTML Pi-hole documentation: how to install and configure unbound
## Dashboard
A nice dashboard allows you to see all queries with the following
information:
* date
* client IP / host
* domain in the query
* result (allowed, blocked)
It can be useful to understand what is happening if a website is not
working, but also see how much queries are blocked.
It is possible to choose the privacy level of logging, because you may
only want to have statistics about numbers of queries allowed / blocked
and not want to know who asked what (this may also be illegal to
monitor this on your LAN).
HTML Documentation about privacy levels
## Audit log
In addition to lists, the audit log will display two columns with the
10 most allowed / blocked domains appearing in queries, that were not
curated through the audit log.
Each line in the "allowed" column have a "blacklist" and "audit"
buttons. The former will add the domain to the internal blacklist
while the latter will just acknowledge this domain and remove it from
the audit log. If you click on audit, it means "I agree with this
domain being allowed".
The column with blocked queries will show a "Whitelist" and "Audit"
buttons that can be used to definitely allow a domain or just
acknowledge that it's blocked.
Once you added a domain to a list or clicked on audit, it got removed
from the displayed list, and you can continue to manually review the
new top 10 domains.
## Disable blocking
There is a feature to temporarily disable blocking for 10 seconds, 30
seconds, 5 minutes, indefinitely or a custom time. This can be useful
if you have an important website that misbehave and want to be sure the
DNS filtering is not involved.
## Local hostnames
It is possible to add custom hostnames that resolve to whatever IP you
want, this makes easy to give nice names to your machines on your LAN.
There is nothing really fancy, but the web ui makes it easy to handle
this task.
## Extra features
Pi-hole can provide a DHCP server to your LAN, has self diagnosis, easy
configuration backup / restore. Maybe more features I did not see or
never used.
# Conclusion
While Pi-hole requires more work than configuring unbound on your local
LAN and feed it with a block list, it provides a lot more features,
flexibility and insights about your DNS than unbound.
Pi-hole works perfectly fine on low end hardware, it uses very little
resources despite all its features.
# Going further
I am currently running Pi-hole as a container with podman, from an
unpriviliged user. This setup is out of scope, but I may write about
it later (or if people ask for it) as it required some quirks due to
replying to UDP packets through the local NAT, and the use of the port
53 (which is restricted to root, usually).
