____ FRST Computer: Model Three ______________________________________
Ok, now we're getting serious... and portable!

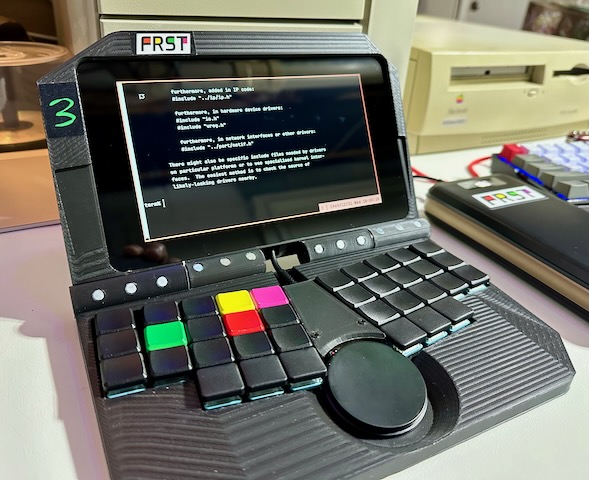

IMG Model Three with the Macs
IMG Model Three ad
(artist's note: I really didn't want to build a Pi-based CyberDeck,
but it was just too easy... Plan 9 support was just too good not to
go ahead and put this together to help boostrap development of
FRST:Net... this will be my go-to development deck for that effort
while a Model Four will represent further refinement of this
essential CyberDeck form factor, possibly using another SoC...)
Hardware and Highlights:
- Raspberry Pi Zero W (1000Mhz BCM2835 ARM CPU w/ 512MB RAM)
- Waveshare 7" 1024x600 display
- Integrated 36-key keyboard w/ touchpad

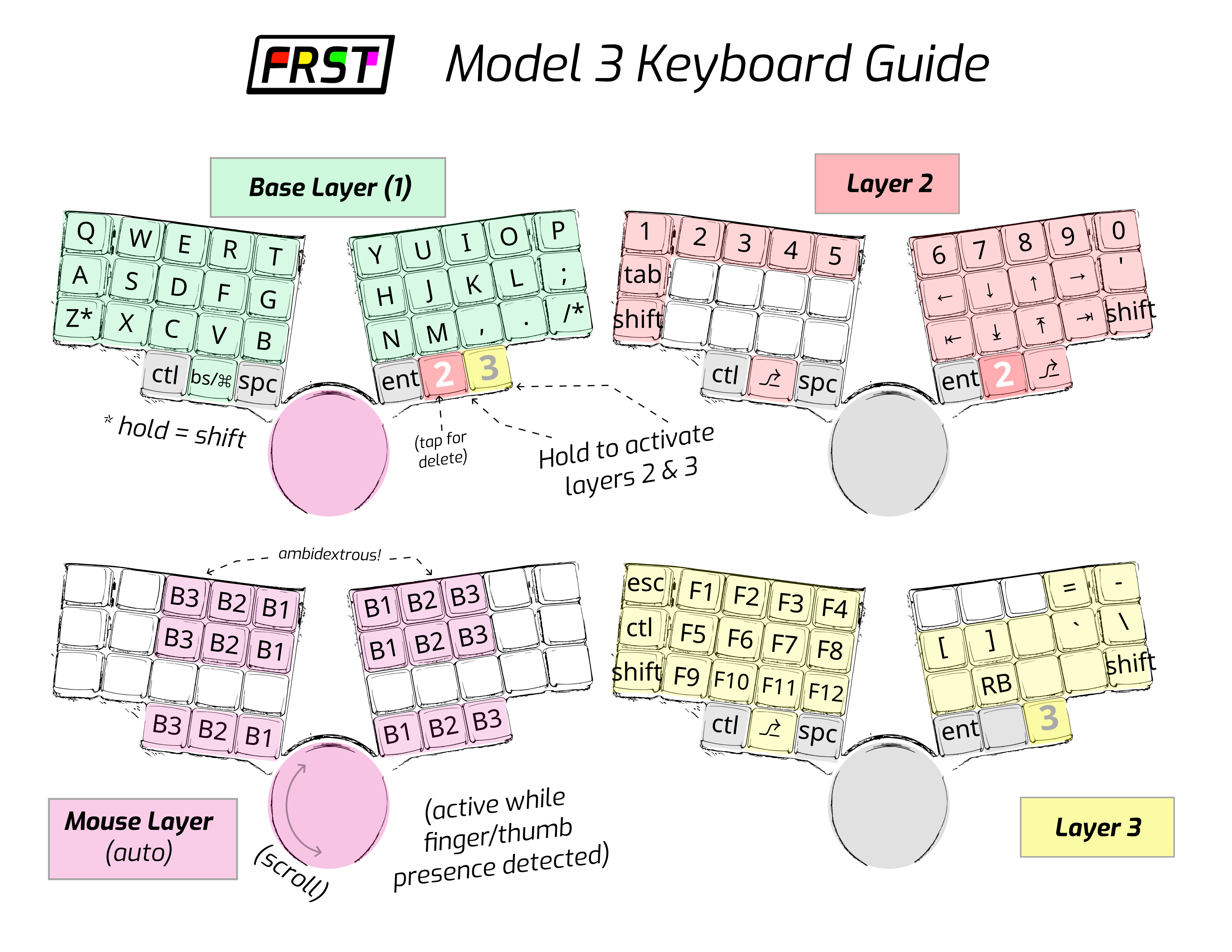

IMG -== Keyboard Guide ==-
- chocV-derived
- QMK firmware
- Miryoku layout (3 efficient layers)
- RGB LED indicates active layer
- Board-mounted 40mm Cirque touchpad module
- Auto-mouse layer (thumb/finger detection)
- three-button operation for maximum Plan 9 effectiveness
- Left-handed and right-handed operation
- Scrolling gestures
- Semtech (SX1262) LoRa module
- Can be equipped with either 915Mhz or 432Mhz modules
- 10mbit Ethernet
- performance-enhancing decals :)
Software specs:
- Plan 9 (latest 9front release)
- PCD-68 emulator (coming soon!)
