The Cthulhu Mjoelnir RDA
a singlecoiler for bloering your juice in
___
| | The Mjoelnir RDA is a 25mm single coil rda for what it is
_| ^ |_ called a restrictive lunghit. But it´s definetly more air
| === | than Hadaly, Entheon and so on. It has an pretty
>\ |^| /< interesting bottom-airflow design which is hard to leak.
|\\| |//| The bottom-airflow leads down to the juicewell and has
| \>^</ | air channels in its side which lead up again outside.
|_______| So the airflow-channel is also there for leading liquid
towards the juicewell. The juicewell holds aproxematley
1-2 ml of liquid, so a pretty big resorvoir. In pratcital use I just
dump a big shot liquid inside the RDA, which hits the coil instantly.
Excess juice is traveling down to the well which works pretty well.
Sometimes there is a little gurgeling and little spitback. So the
first hit after dripping should be gently and its good to go.
I havent used it in cold conditions yet and winter will tell if
capilary action is still strong enough to feed liquid up.
In this one I like a fused clapton more than parallel round wire.
I think it´s because the airflow underneath the coil is pretty wide
and for aerodynamic this doesnt lead so much to laminar flow around
it. The coil is 2x 26G SS inside a 36G wrapped around ID 2.5mm 4Hz.
An ID of 2.5mm works best because excess juice is more likely to
travel down to the bottom.
This setup is at the moment on a regulated device at 30-35W.
Flavor...Flavor is good. But more important it has a nice satisfying
hit to me.
At factory defaults the airflow-channels of the barrel are a little
bit smaller than the ones of the device itsel. I equaled them up
and applied a phase on the outside for smother air flow like other
RDA´s do. I think the flow-rate is little higher than before (:

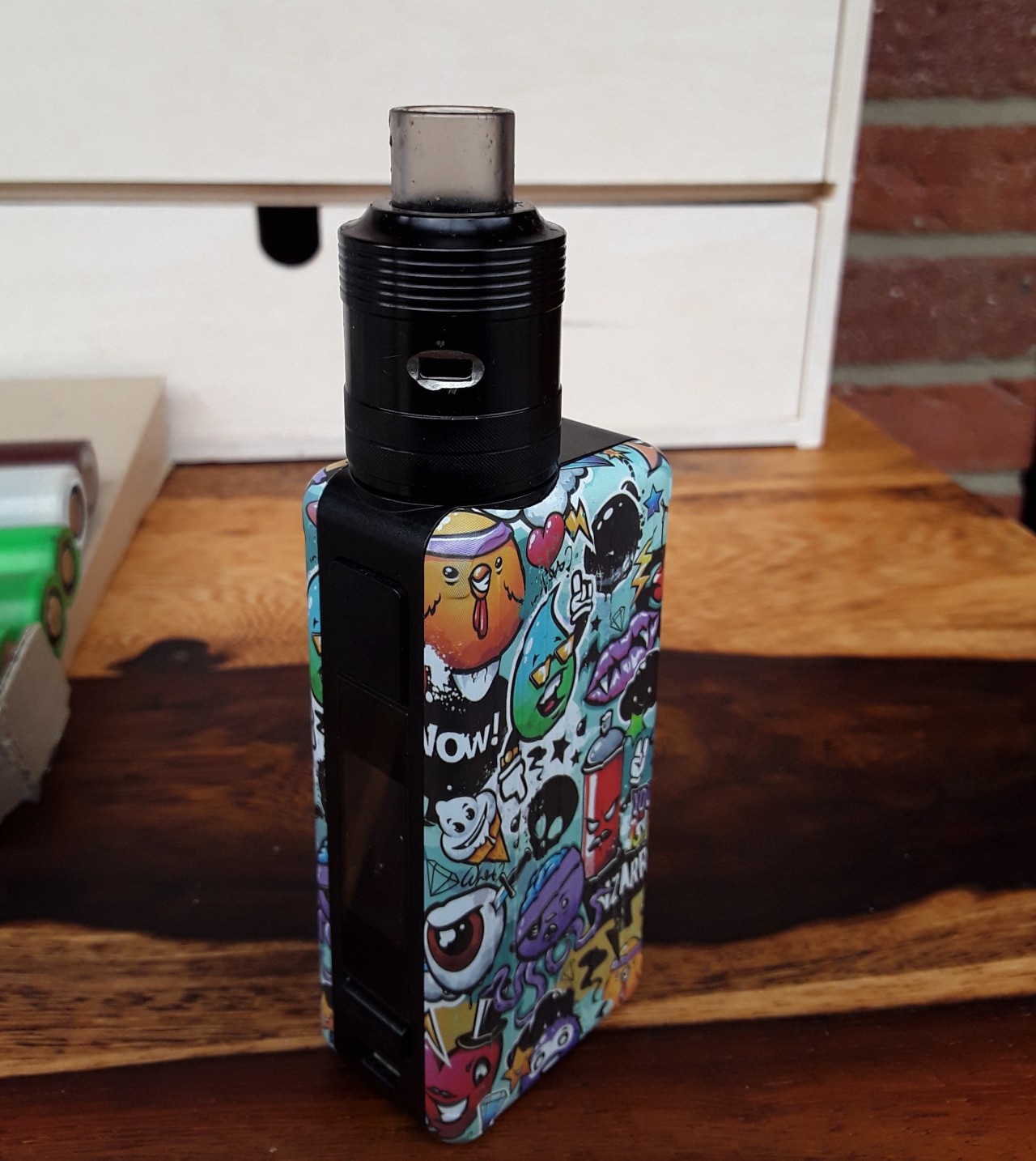

IMG Pic1

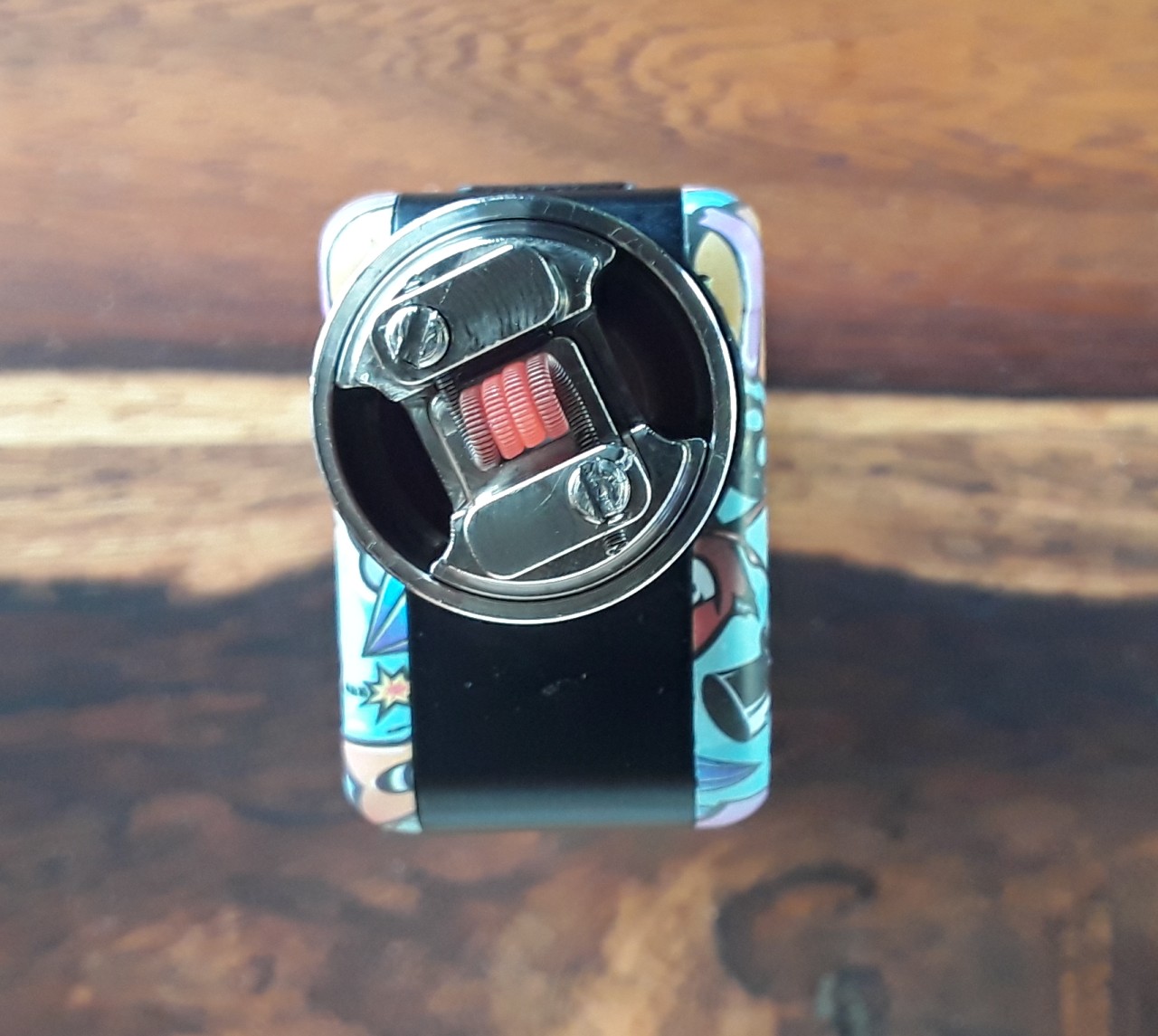

IMG Pic2

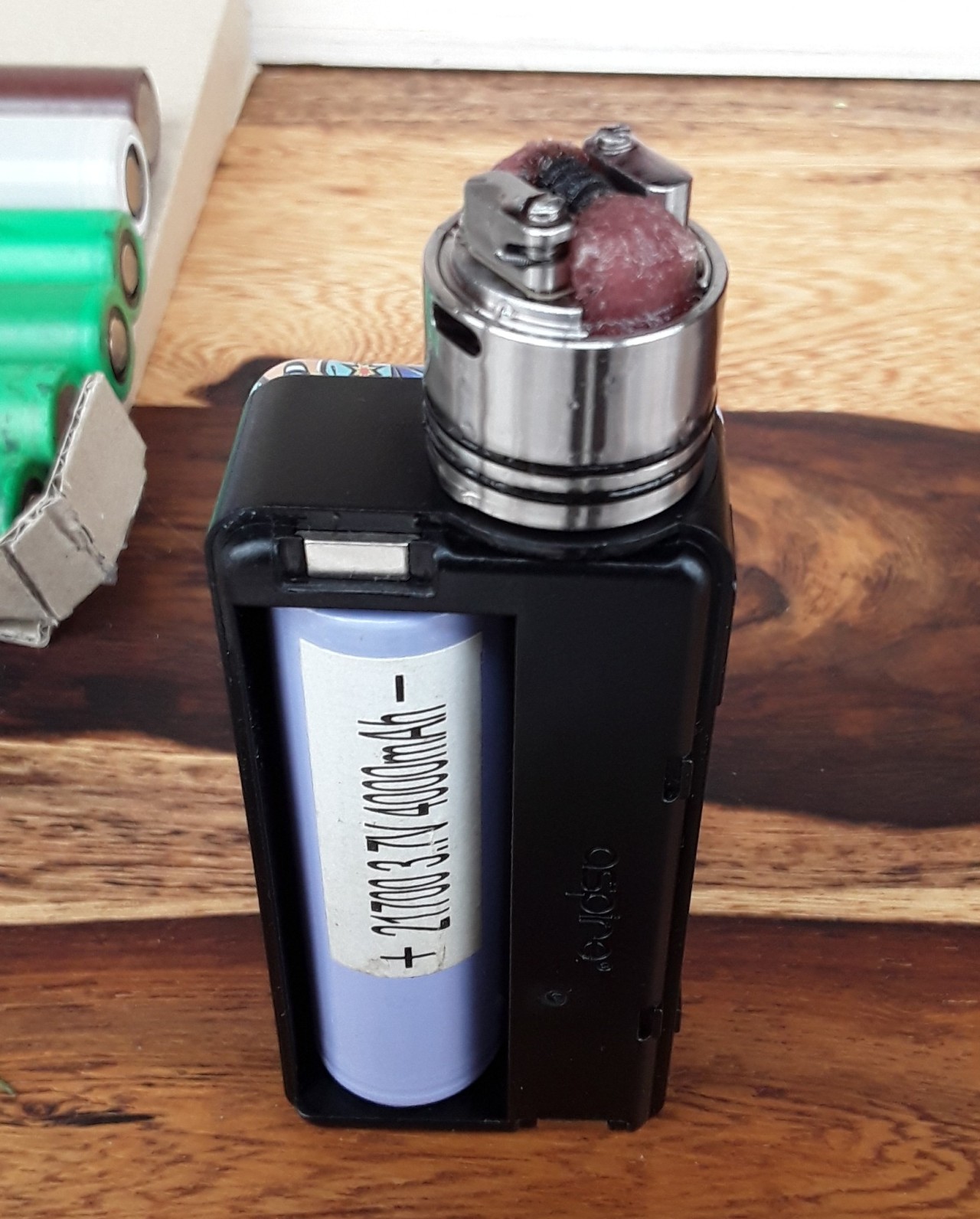

IMG Pic3
