       Using Wake On Lan so you don't have to use your fingers

       Published on : 2025-03-14 14:52

       WakeOnLan is a very useful feature, especially if you're a lazy
       person. With WakeOnLan you can start your machines without walking
       or using your fingers and push the power button.

   IMG  A photo of how I wake up my cluster

        - What you need

       You only need 2 things: wakeonlan and ethtool. You can easily
       install them with:

           sudo apt install wakeonlan ethtool

       wakeonlan is needed on the machine you'll be using to send the
       wake up command while ethtool is used to configure your network
       card.

        - Using ethtool to enable Wake-on-LAN

        - + Find the Network Adapter (in my case it's `enp1s0`)

           ip a

        - + Check if WakeOnLan is supported

           sudo ethtool enp1s0 | grep "Wake-on"

       You should see something like ` Supports Wake-on: pumbg`.
       To enable WakeOnLan you have to:

           sudo ethtool --change enp1s0 wol g

       Right now WakeOnLan is enabled but the setting is not persistent.

        - + Persist Wake-on-LAN After Reboot

           sudo pico /etc/systemd/system/wol.service

       Add the following and replace `enp1s0` with your network card

           [Unit]
           Description=Enable Wake On Lan

           [Service]
           Type=oneshot
           ExecStart = /usr/sbin/ethtool --change enp1s0 wol g

           [Install]
           WantedBy=basic.target


        - + Enable the service:
           sudo systemctl enable wol.service

        - Using wakeonlan to start your computers

       In order to wake up your computers with a magic wakeonlan packet
       you need to know it's MAC address. You can easily find it with

           sudo ethtool -P enp1s0

       Once you get the MAC address you can easily wake the computer up
       from another computer using the wakeonlan command:

           wakeonlan "D2:CB:3B:20:DC:AE"

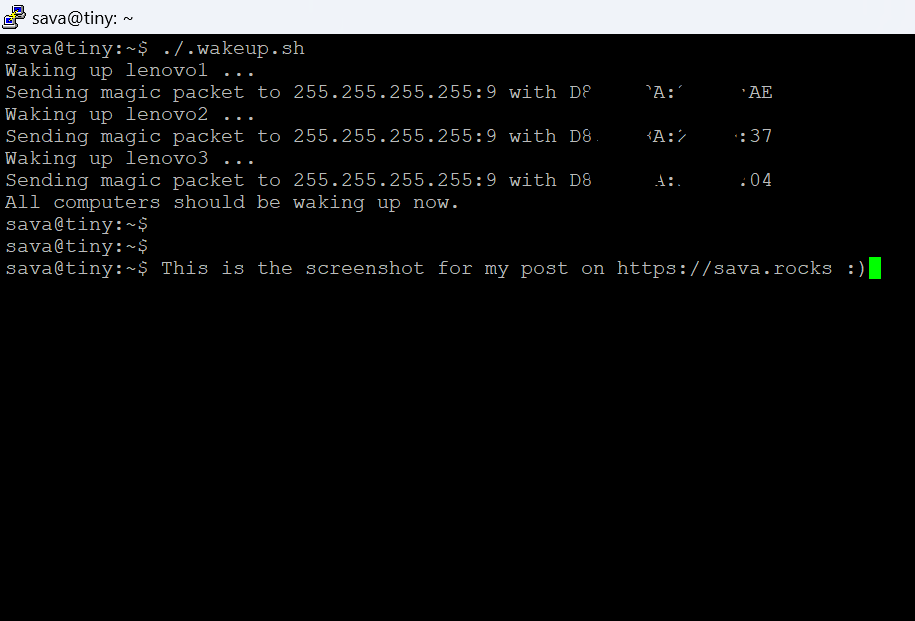

       I have create a small bash script to wake up all my 3 Lenovo M53's
       at once:

           #!/bin/bash

           # MAC addresses (Not the real ones)
           MAC1="D2:CB:3B:20:DC:AE" # lenovo1 mac
           MAC2="D2:CB:3B:20:DD:37" # lenovo2 mac
           MAC3="D2:CB:3B:20:D6:04" # lenovo3 mac

           # Wake up the three computers
           echo "Waking up lenovo1 ..."
           wakeonlan $MAC1

           echo "Waking up lenovo2 ..."
           wakeonlan $MAC2

           echo "Waking up lenovo3 ..."
           wakeonlan $MAC3

           echo "All computers should be waking up now."
