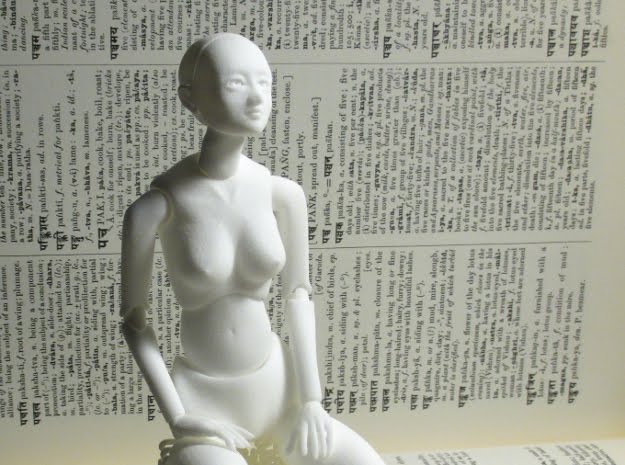

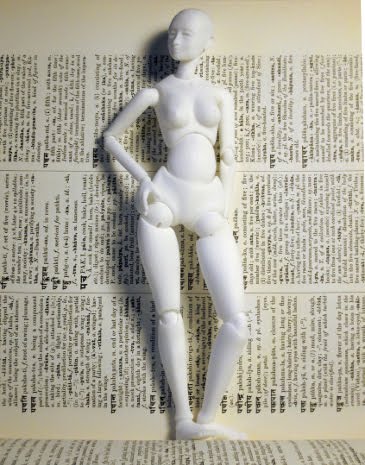

       The Mannequin

   IMG Image 1

       I've made a few geometric squickles on Shapeways, but this has been
       by far my most ambitious and time consuming project.

       Here's some pictures and a short tutorial for anyone interested in
       the basic workflow I used in Blender.

   IMG Image 2
   IMG Image 3
   IMG Image 4
   IMG Image 5

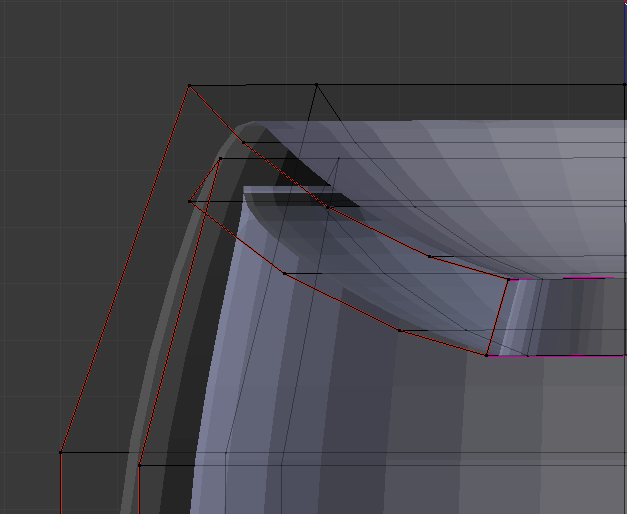

       Rendering the model in 'X-ray' gives an interesting result, showing
       some of the joint detail:

   IMG Image 6

       I won't say anything about the modelling, but here are the
       technicalities:

   IMG Image 7

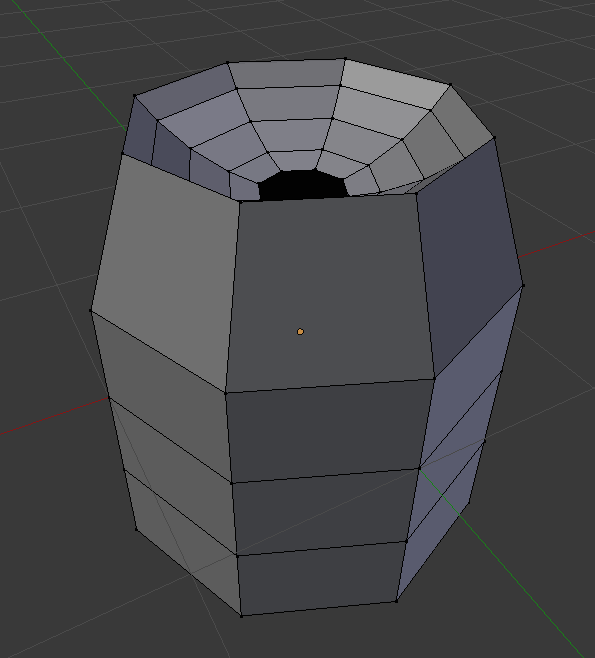

       I used the 3D cursor as a center for spherifying scale
       (ctrl+shift+s) to make the ball joint sockets roughly round. Added
       a skin modifier with sane thickness and sharp (1.0, 1.0) inner and
       outer creases, and a subsurf.

   IMG Image 8

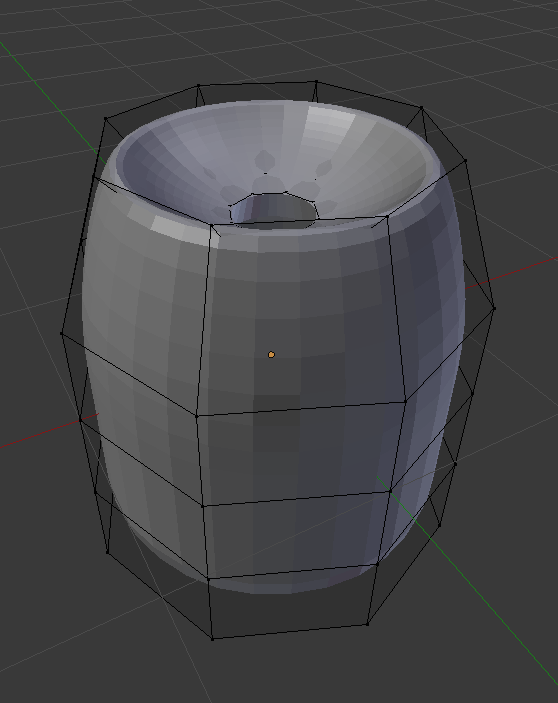

       I kept the 'source' model and the printable output separate, so
       about now I'd copy the whole thing and apply skin modifier.

   IMG Image 9

       At this point some of the skin overlaps, so I removed some edge
       loops (x -> "Edge Loops"), and then applied subsurf.

   IMG Image 10

       Voilà!
